The 2009 Chevrolet Corvette, Z06, and ZR1

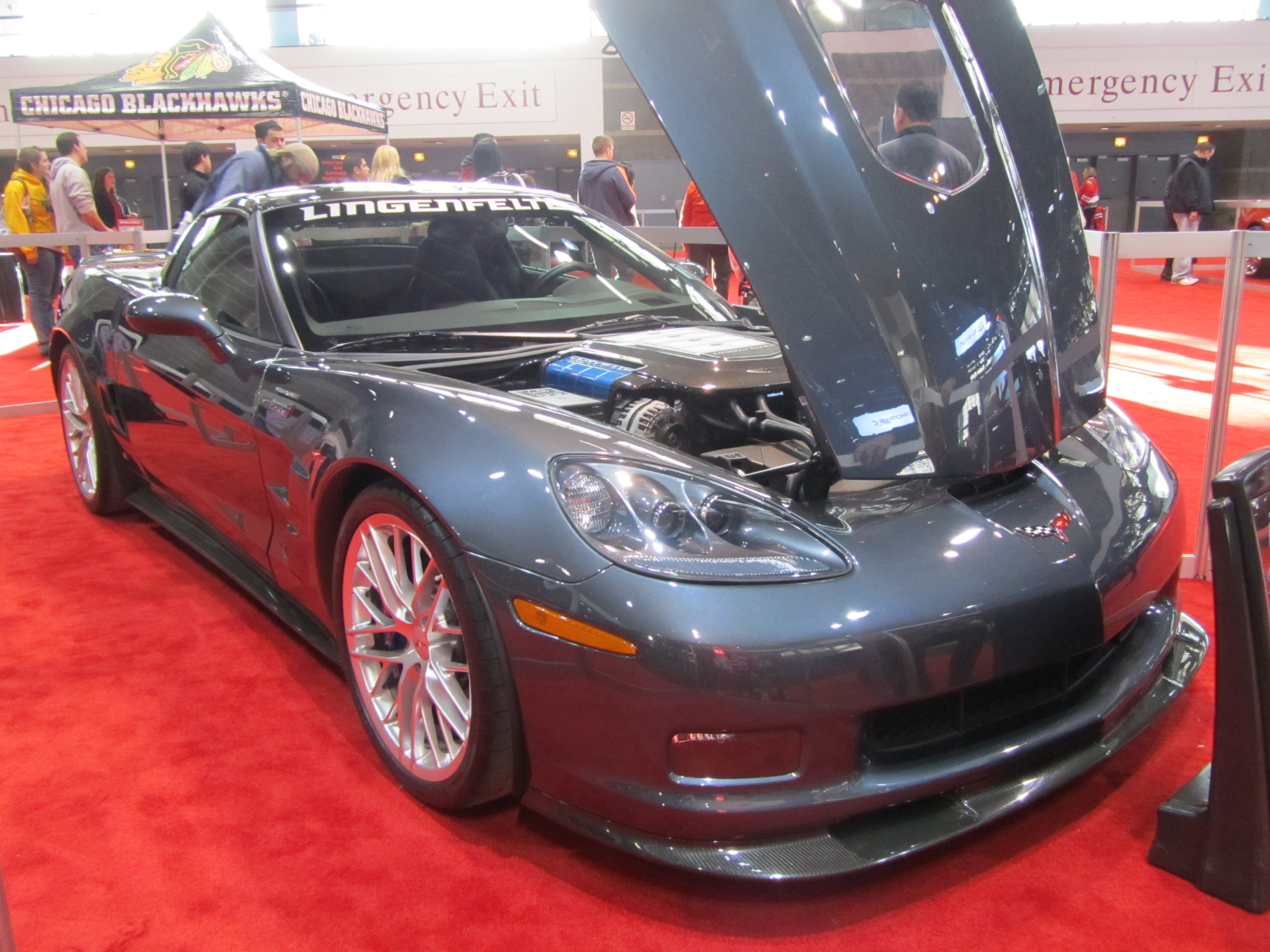

2009 Corvette ZR1 with Supercharged LS9 Engine
2009 marked a historic year for the Corvette lineup with the introduction of the supercharged ZR1, the most powerful production Corvette ever built to that date. Despite this milestone, the model year was severely impacted by the global financial crisis, with production plummeting to 16,956 units—less than half of 2008's 35,310 cars. The ZR1 featured an Eaton TVS R2300 supercharger delivering 638 horsepower and 604 lb-ft of torque, a 208 hp increase over the base LS3 engine. The Z06 continued with the legendary 7.0L LS7 producing 505 horsepower. The base coupe and convertible received a standard 430 hp LS3 6.2L V-8, with a 436 hp dual-mode exhaust option. 2009 also introduced two new premium exterior colors: Jetstream Blue Metallic Tintcoat and Crystal Red Metallic Tintcoat. The interior offered expanded custom leather-wrapped options, including the new Dark Titanium, Sienna, and Linen color selections introduced to the 4LT package. The 2009 Corvette ZR1 Pilot program produced just 60 pre-production vehicles before the regular ZR1 variant launched to enthusiasts worldwide.
Production Options and Build Statistics
Total 2009 Corvettes Built - 16,956
Total 2009 Coupes - 8,737
Total 2009 Convertibles - 3,343
Total 2009 Z06 - 3,461
Total 2009 ZR1 - 1,415
Total 2009 Convertibles - 3,343
Total 2009 Z06 - 3,461
Total 2009 ZR1 - 1,415
Coupe Serial Numbers: 1G1YY26W985100001 - 1G1YY26W985108737
Convertible Serial Numbers: 1G1YY36W985100001 - 1G1YY36W985103343
Z06 Serial Numbers: 1G1YY26E985100001 - 1G1YY26E985103461
ZR1 Serial Numbers: 1G1YY26Z985800001 - 1G1YY26Z985801415
ZR1 Pilot Serial Numbers: 1G1YY26Z985700001 - 1G1YY26Z985700060
Convertible Serial Numbers: 1G1YY36W985100001 - 1G1YY36W985103343
Z06 Serial Numbers: 1G1YY26E985100001 - 1G1YY26E985103461
ZR1 Serial Numbers: 1G1YY26Z985800001 - 1G1YY26Z985801415
ZR1 Pilot Serial Numbers: 1G1YY26Z985700001 - 1G1YY26Z985700060
The "Vehicle Identification Number" (also VIN or serial number) is stamped on a plate on the inner vertical surface of the left windshield pillar visible through the windshield. Here is the VIN decoder.
| Position | Character | Description |
|---|---|---|
| 1 | 1 | US built |
| 2 | G | General Motors Product |
| 3 | 1 | Chevrolet Motor Division Vehicle |
| 4&5 | YY | Corvette |
| 6 | 2 or 3 |
Body style number 2 = Two door hatchback style 07, 08, 77, or 87 3 = Two door convertible style 67 |
| 7 | 5 or 6 | Restraint Code (5=Active [manual] belts with Driver and Passenger Inflatable Restraint with Occupant Sensor, 6=Active [manual] belts with Driver and Passenger Inflatable Restraint and Side and Occupant Sensor) |
| 8 | W, E, or Z | Engine Type (W=376 ci/430 hp LS3, E=427 ci/505 hp LS7, Z=376 ci/638 hp LS9) |
| 9 | ? | A check digit that calculates the characters in the serial number and gives it a single digit code and can be used to verify that the serial number is legitimate |
| 10 | 9 | The model year 9=2009 |
| 11 | 5 | Bowling Green, Kentucky |
| 12-17 | 100001-115933 for coupes, convertibles, and Z06; 700001-700060 for ZR1 Pilot; 800001-801415 for ZR1 | Production Sequence |
Production Options
| RPO | Description | Total | Coupes | Convertibles | Z06 | ZR1 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| RPO | Description | Qty | % | Qty | % | Qty | % | Qty | % | Qty | % |
| Total | 16,956 | 100% | 8,737 | 51.5% | 3,343 | 19.7% | 3,461 | 20.4% | 1,415 | 8.4% | |
| 1LT | LT Equip Package (Coupe & Conv) | 3,204 | 18.9% | 3,204 | 36.7% | 0 | 0.0% | 0 | 0.0% | 0 | 0.0% |
| 2LT | LT Equip Package (Coupe & Conv) | 3,652 | 21.5% | 2,847 | 32.6% | 805 | 24.1% | 0 | 0.0% | 0 | 0.0% |
| 3LT | LT Equip Package (Coupe & Conv) | 2,932 | 17.3% | 2,686 | 30.7% | 246 | 7.4% | 0 | 0.0% | 0 | 0.0% |
| 1ZR | ZR1 Base | 1,415 | 8.4% | 0 | 0.0% | 0 | 0.0% | 0 | 0.0% | 1,415 | 100.0% |
| 2Z6 | Z06 Package | 3,461 | 20.4% | 0 | 0.0% | 0 | 0.0% | 3,461 | 100.0% | 0 | 0.0% |
| AAB | Memory Package | 11,482 | 67.7% | 5,126 | 58.7% | 2,314 | 69.2% | 2,876 | 83.1% | 1,166 | 82.4% |
| AQ9 | Dual Power Seats | 13,645 | 80.4% | 6,234 | 71.3% | 3,343 | 100.0% | 2,624 | 75.8% | 1,444 | 102.0% |
| AR9 | Base Seats | 3,311 | 19.5% | 2,503 | 28.6% | 0 | 0.0% | 808 | 23.3% | 0 | 0.0% |
| CM7 | Power Convertible Top | 3,343 | 19.7% | 0 | 0.0% | 3,343 | 100.0% | 0 | 0.0% | 0 | 0.0% |
| D80 | Active Handling | 12,717 | 74.9% | 6,234 | 71.3% | 2,418 | 72.4% | 2,876 | 83.1% | 1,189 | 84.0% |
| FE1 | Base Suspension | 3,539 | 20.9% | 3,539 | 40.5% | 0 | 0.0% | 0 | 0.0% | 0 | 0.0% |
| FE3 | Sport Ride Suspension | 8,046 | 47.4% | 5,198 | 59.5% | 2,848 | 85.2% | 0 | 0.0% | 0 | 0.0% |
| FE4 | Z06 Suspension | 4,876 | 28.7% | 0 | 0.0% | 0 | 0.0% | 3,461 | 100.0% | 1,415 | 100.0% |
| GM8 | Rear Axle Ratio - 2.56 | 3,209 | 18.9% | 2,418 | 27.7% | 791 | 23.7% | 0 | 0.0% | 0 | 0.0% |
| GU2 | Rear Axle 2.73 Ratio | 2,653 | 15.6% | 1,693 | 19.4% | 960 | 28.7% | 0 | 0.0% | 0 | 0.0% |
| GU6 | Rear Axle Ratio - 3.42 | 11,094 | 65.4% | 4,626 | 52.9% | 1,592 | 47.6% | 3,461 | 100.0% | 1,415 | 100.0% |
| MM6 | Six-speed Manual Transmission | 6,189 | 36.5% | 2,401 | 27.5% | 787 | 23.5% | 2,189 | 63.3% | 812 | 57.4% |
| MX0 | Six-speed Automatic Transmission | 10,767 | 63.5% | 6,336 | 72.5% | 2,556 | 76.5% | 1,272 | 36.7% | 603 | 42.6% |
| N37 | Telescoping Steering Wheel | 10,973 | 64.7% | 4,854 | 55.5% | 3,152 | 94.3% | 1,730 | 50.0% | 1,237 | 87.4% |
| NPP | Dual Mode Exhaust System | 5,263 | 31.0% | 3,152 | 36.1% | 2,111 | 63.2% | 0 | 0.0% | 0 | 0.0% |
| QG6 | Base Aluminum Wheel | 2,214 | 13.1% | 2,214 | 25.3% | 0 | 0.0% | 0 | 0.0% | 0 | 0.0% |
| QG7 | Polished Wheel | 3,391 | 20.0% | 2,588 | 29.6% | 803 | 24.0% | 0 | 0.0% | 0 | 0.0% |
| QL9 | Z06 Polished Aluminum Wheel | 1,384 | 8.2% | 0 | 0.0% | 0 | 0.0% | 1,384 | 40.0% | 0 | 0.0% |
| QX1 | Competition Gray Aluminum Wheel | 1,068 | 6.3% | 814 | 9.3% | 254 | 7.6% | 0 | 0.0% | 0 | 0.0% |
| QX3 | Chrome Wheel | 2,861 | 16.9% | 1,121 | 12.8% | 1,240 | 37.1% | 500 | 14.5% | 0 | 0.0% |
| Q44 | Z06 Competition Gray Wheel | 692 | 4.1% | 0 | 0.0% | 0 | 0.0% | 692 | 20.0% | 0 | 0.0% |
| Q76 | Z06 Chrome Wheel | 1,785 | 10.5% | 0 | 0.0% | 0 | 0.0% | 1,785 | 51.6% | 0 | 0.0% |
| U2K | XM Satellite Radio | 13,565 | 80.0% | 6,586 | 75.3% | 2,678 | 80.1% | 2,765 | 79.9% | 1,136 | 80.3% |
| UV6 | Heads up Display | 11,869 | 70.0% | 4,506 | 51.6% | 2,315 | 69.3% | 3,076 | 88.9% | 1,372 | 97.0% |
| Z51 | Performance Handling Pkg | 8,046 | 47.4% | 5,198 | 59.5% | 2,848 | 85.2% | 0 | 0.0% | 0 | 0.0% |
Color Options for 2009
2009 Corvette Exterior Colors
| ; | ; | Total | Coupes | Convertibles | Z06 | ZR1 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| RPO | Description | Qty | % | Qty | % | Qty | % | Qty | % | Qty | % |
| 10U | White Exterior | 943 | 5.6% | 654 | 7.5% | 134 | 4.0% | 140 | 4.0% | 15 | 1.1% |
| 41U | Black Exterior | 4,486 | 26.4% | 2,214 | 25.3% | 737 | 22.1% | 1,037 | 30.0% | 498 | 35.2% |
| 45U | Velocity Yellow Exterior | 1,356 | 8.0% | 831 | 9.5% | 234 | 7.0% | 245 | 7.1% | 46 | 3.3% |
| 67U | Machine Silver Exterior | 1,524 | 9.0% | 939 | 10.7% | 328 | 9.8% | 215 | 6.2% | 42 | 3.0% |
| 74U | Victory Red Exterior | 3,222 | 19.0% | 1,709 | 19.6% | 623 | 18.6% | 699 | 20.2% | 191 | 13.5% |
| 83U | Atomic Orange | 958 | 5.7% | 559 | 6.4% | 167 | 5.0% | 193 | 5.6% | 39 | 2.8% |
| 85U | Bluestream Tintcoat | 1,186 | 7.0% | 687 | 7.9% | 254 | 7.6% | 184 | 5.3% | 61 | 4.3% |
| 89U | Crystal Claret Tintcoat | 2,128 | 12.5% | 1,037 | 11.9% | 451 | 13.5% | 510 | 14.7% | 130 | 9.2% |
| 94U | Jetstream Blue Metallic Tintcoat (NEW) | 892 | 5.3% | 613 | 7.0% | 180 | 5.4% | 89 | 2.6% | 10 | 0.7% |
| 96U | Crystal Red Metallic Tintcoat (NEW) | 1,661 | 9.8% | 888 | 10.2% | 394 | 11.8% | 349 | 10.1% | 30 | 2.1% |
2009 Corvette Interior Colors
| ; | ; | Total | Coupes | Convertibles | Z06 | ZR1 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| RPO | Description | Qty | % | Qty | % | Qty | % | Qty | % | Qty | % |
| 19I | Ebony Interior | 8,478 | 50.0% | 4,201 | 48.1% | 1,671 | 50.0% | 1,730 | 50.0% | 876 | 61.9% |
| 31I | Light Cashmere Interior | 1,689 | 10.0% | 1,256 | 14.4% | 433 | 13.0% | 0 | 0.0% | 0 | 0.0% |
| 42I | Ebony/Linen Interior | 1,356 | 8.0% | 695 | 8.0% | 334 | 10.0% | 210 | 6.1% | 117 | 8.3% |
| 62I | Ebony/Sienna Interior (NEW) | 847 | 5.0% | 477 | 5.5% | 201 | 6.0% | 145 | 4.2% | 24 | 1.7% |
| 78I | Ebony/Dark Titanium Interior (NEW) | 847 | 5.0% | 434 | 5.0% | 168 | 5.0% | 210 | 6.1% | 35 | 2.5% |
| 84I | Light Titanium Interior | 2,542 | 15.0% | 1,435 | 16.4% | 536 | 16.0% | 382 | 11.0% | 189 | 13.4% |
| 193 | Ebony Leather Interior | 7,631 | 45.0% | 3,706 | 42.4% | 1,505 | 45.0% | 1,558 | 45.0% | 862 | 60.9% |
| 313 | Lt Cashmere Leather Interior | 1,356 | 8.0% | 1,005 | 11.5% | 351 | 10.5% | 0 | 0.0% | 0 | 0.0% |
| 425 | Ebony/Linen Leather Interior | 1,186 | 7.0% | 595 | 6.8% | 276 | 8.3% | 181 | 5.2% | 134 | 9.5% |
| 625 | Ebony/Sienna Leather Interior (NEW) | 677 | 4.0% | 382 | 4.4% | 168 | 5.0% | 93 | 2.7% | 34 | 2.4% |
| 785 | Ebony/Dark Titanium Leather Interior (NEW) | 677 | 4.0% | 347 | 4.0% | 135 | 4.0% | 162 | 4.7% | 33 | 2.3% |
| 843 | Lt Titanium Leather Interior | 1,780 | 10.5% | 1,003 | 11.5% | 426 | 12.8% | 281 | 8.1% | 70 | 4.9% |
2009 Corvette Specifications
|
ENGINE SPECIFICATIONS
|
|
| Feature | Base LS3 / Z06 LS7 / ZR1 LS9 Supercharged |
|---|---|
| Type | V-8, all aluminum, overhead valve |
| Displacement (cubic inches / liters) | 376 ci / 6.2L (LS3) / 427 ci / 7.0L (LS7) / 376 ci / 6.2L (LS9) |
| Bore x Stroke (inches) | 3.90 x 3.62 (LS3) / 4.13 x 3.98 (LS7) / 4.06 x 3.62 (LS9) |
| Compression Ratio | 10.7:1 (LS3) / 11.0:1 (LS7) / 9.0:1 (LS9) |
| Horsepower @ RPM | 430 @ 5900 (LS3) / 505 @ 6300 (LS7) / 638 @ 6500 (LS9) |
| Torque (lb.-ft.) @ RPM | 424 @ 4600 (LS3) / 470 @ 4800 (LS7) / 604 @ 3800 (LS9) |
| Fuel System | Electronic fuel injection, sequential |
| Supercharger (LS9 only) | Eaton TVS R2300 positive displacement with integrated air-to-water intercooler |
